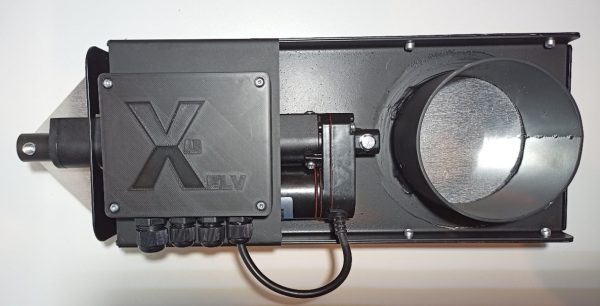

XAB ELV solenoid valve
About the product
Electric automatic valve with integrated control box. Select size.
Product description
XAB’s ELV series consists of electric automatic valves with an integrated control box. The circuit board can be triggered by either a 230V or 24VDC signal from a connected machine. The control box is powered by 24V from the chip extractor and, when a trigger signal is received, the damper opens and the chip extractor receives a start signal.
The valve is particularly relevant for dust-generating machinery, such as grinders, where active extraction should be ensured.
Choose from the sizes 60, 76, 100 and 120 mm.
Technical specifications
| Dimension | 60 mm, 76 mm, 100 mm, 120 mm |
|---|
