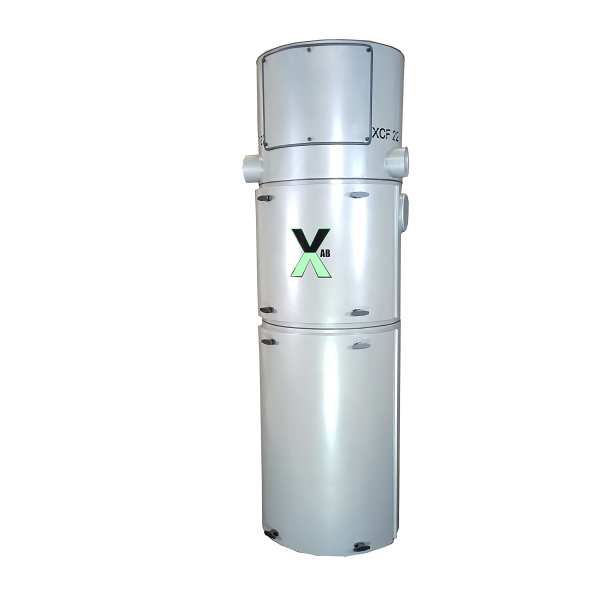

Compact chip extractor XCF-22
About the product
XAB’s XCF series for light to medium-duty dust can be easily adapted to each user’s specific requirements. The units are equipped as standard with automatic start/stop via the valves in the system for optimum economy and user-friendliness. The machines are an all-in-one solution with the motor/fan and control cabinet located on top of the unit.
Product description
Quick facts
- Frequency-controlled fan with various operating modes and pressure control that adjusts the speed as required, thereby minimising energy consumption and maintaining the correct flow rate regardless of the number of active extraction points.
- Fan and integrated above the filter.
- Heavy-duty powder-coated steel frame.
- Completely maintenance-free design.
- Spark-proof aluminium fan.
- Integrated control cabinet.
- Noise-reduced with low noise levels.
- Low operating and maintenance costs.
- Can be fitted with an external HEPA filter.
- Can be placed outdoors under a weather shelter.
- Separately cooled motor.
- Wheeled sack trolley for a 240-litre heavy-duty sack.
- Dual pressure-equalising filters.
- Automatic filter cleaning via a three-phase vibration motor.
- Level sensor as standard.
- Hinged doors fitted with sturdy twist locks.
Technical specifications
| Degree of filtration | 99,9% |
|---|---|
| Dust control | 240-litre sack |
| Level sensor | Optical |
| Maximum air flow | 1,700 m³/h |
| Dimensions (WxH) | 670 x 2100 mm |
| Weight | 162 kg |
| Engine size | 2.2 kW |
| Excitement | 400 V, 3-phase |
| My fuse | 10A |
| Control voltage | 24 V DC |
| Diameter of suction pipe | 2 x 120 mm |
| Exhaust air diameter | 160 mm |
| Maximum noise level | 64 dB |
